How to Add a Scoreboard to OBS

Easily integrate sports scoreboards with OBS

OBS Logo

It's easy to connect your ScoreboardMax overlay to OBS and start streaming with a clean, pro-level scoreboard. This quick guide walks you through the steps to add a ScoreboardMax overlay in minutes. Perfect for football, basketball, baseball, soccer, volleyball, and other sports, ScoreboardMax helps you create a high-quality, professional live stream. Works with OBS on Windows, Mac, and Linux.

Step 1: Create the Scoreboard You'll Use with OBS

First, create and configure your scoreboard in ScoreboardMax with your desired sport, teams, and settings.

Creating a scoreboard in ScoreboardMax

Instructions:

  • Log into your ScoreboardMax account
  • Go to "Scoreboards" from the navigation menu
  • Select an existing scoreboard, or choose "New Scoreboard"
  • Select your sport (football, basketball, volleyball, etc.)
  • Configure team names, colors, and logos
  • Adjust any sport-specific settings as needed
  • Save your scoreboard configuration

Pro Tip: Create and save team profiles in advance for quick setup of future scoreboards.

Don't have a ScoreboardMax account yet? Create a free trial account in seconds.

Create Account

No credit card required

Step 2: Copy Livestream Embed URL

On the scoreboard details page, copy the Livestream Embed URL.

Copying the scoreboard embed URL

Instructions:

  • A copy button has been provided for your convenience
  • You will use this copied URL to paste into OBS in the next step

Pro Tip: You can customize the behavior of your scoreboard to meet game rules and your preferences with the "Settings" button in the upper right.

Step 3: Launch OBS

Open OBS, and select the scene you want to overlay the scoreboard onto.

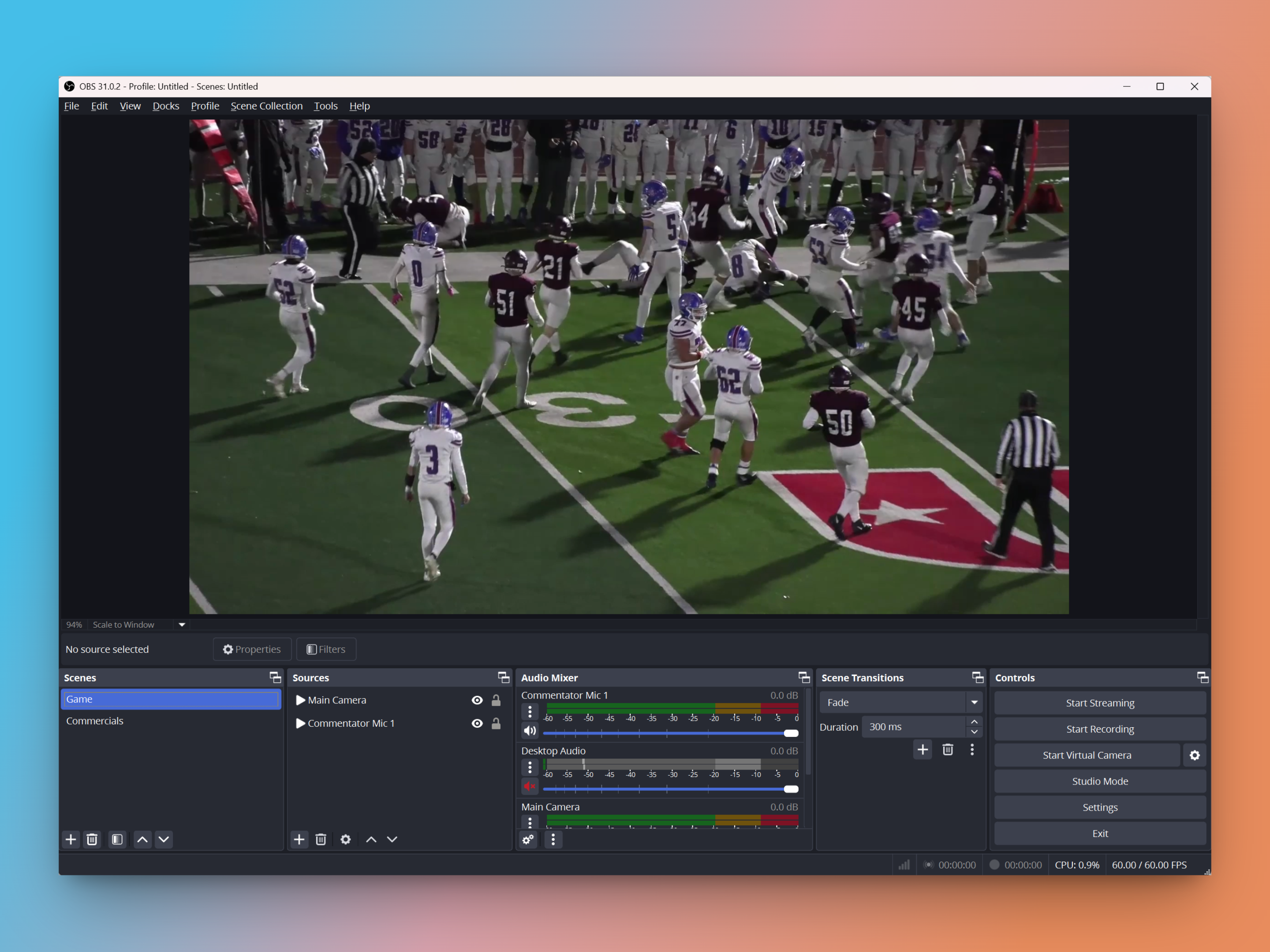

Selecting a scene in OBS

Instructions:

  • Choose the scene that contains your camera inputs for the game
  • If you don't choose the scene with your camera inputs, you won't be able to seamlessly overlay the scoreboard

Pro Tip: Take a look at your Base (Canvas) Resolution under Settings > Video and note it for use in a later step.

Step 4: Create Browser Overlay Source

After selecting your scene, go to the "Sources" section and add a new "Browser" source.

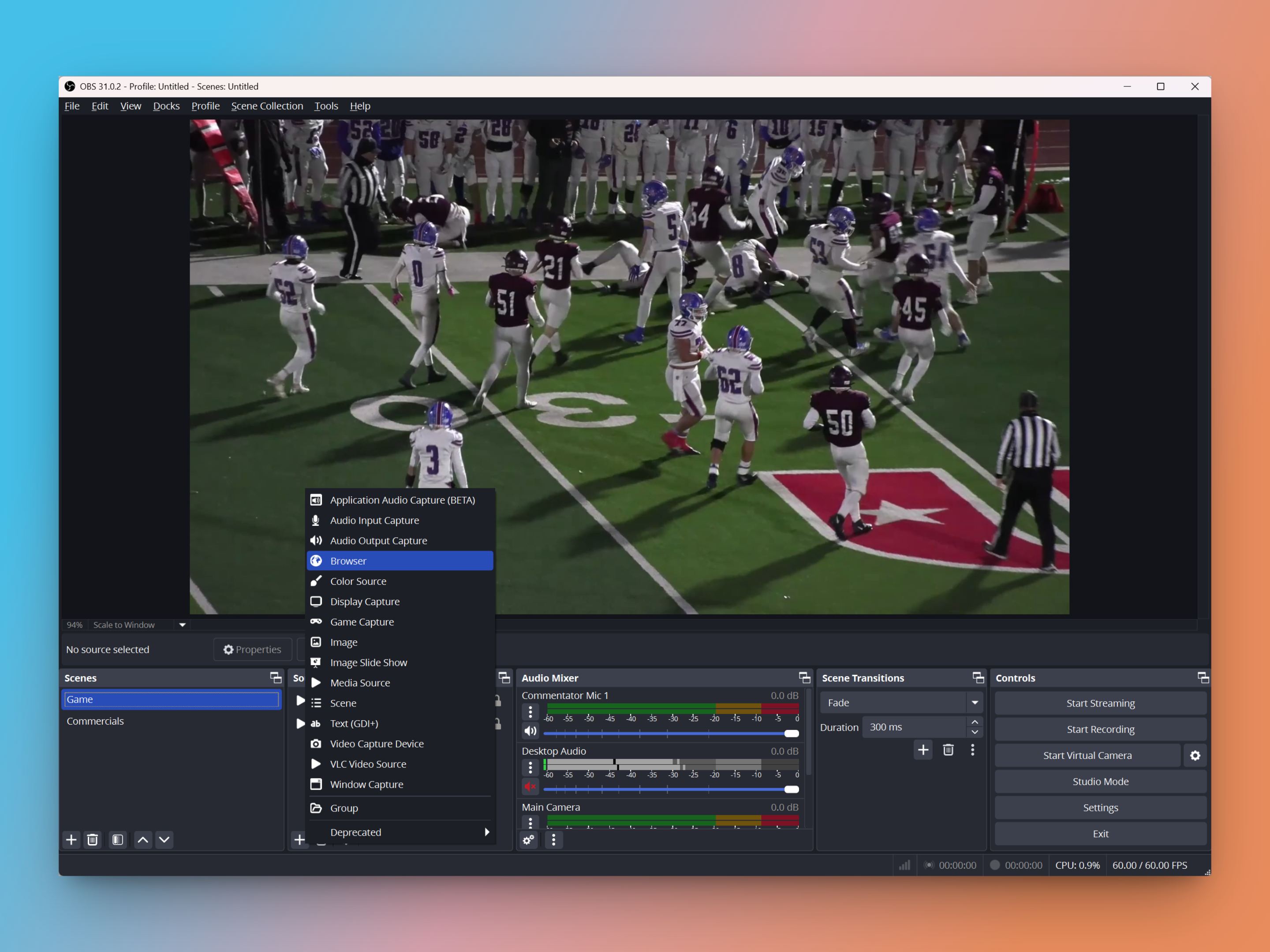

Adding a browser source in OBS

Instructions:

  • After selecting your Scene, go to the "Sources" section
  • Click the "+" icon in the lower portion of the section
  • Select "Browser" from the list of source types
  • Choose "Create New" and name it something like "Scoreboard"
  • Click "OK" to proceed

Step 5: Configure the Browser Source

Paste the Livestream Embed URL into the URL field and set your input resolution / width & height.

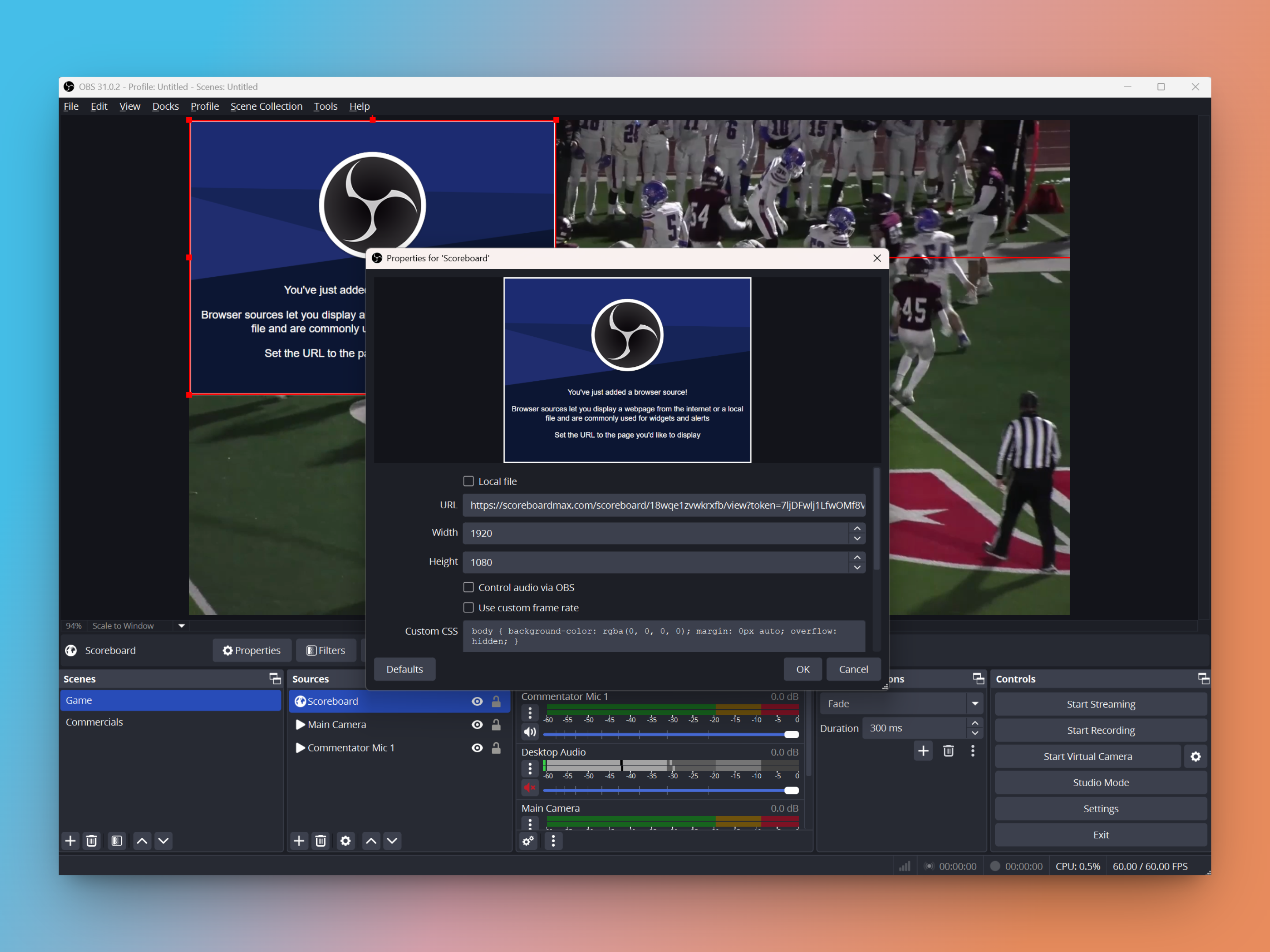

Configuring the browser source in OBS

Instructions:

  • Paste the Livestream Embed URL into the "URL" field that you previously copied from ScoreboardMax
  • IMPORTANT: Enter your video base (canvas) resolution (i.e., 1920x1080). This will give you much better results than resizing the scoreboard with your mouse (will prevent blurriness).
  • If you do not know your video base resolution, go to Settings > Video > and you will find it under "Base (Canvas) Resolution"
  • You can leave the rest of the settings as the default values, and click "OK" to continue

Step 6: Congratulations, You're Ready to Go!

Your scoreboard should now be visible on the screen, ready for your broadcast.

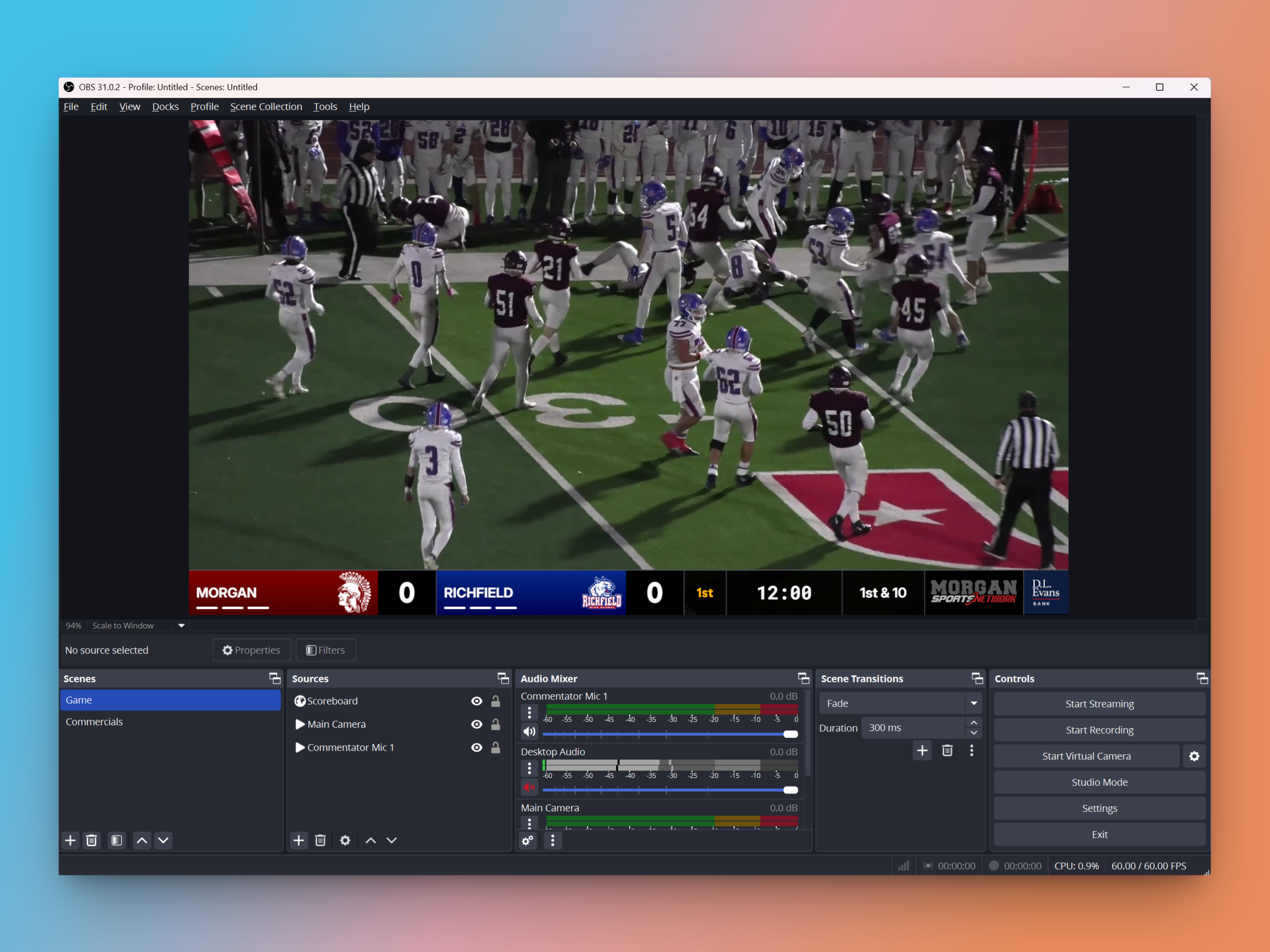

Completed scoreboard overlay in OBS

Step 7: Control Your Scoreboard

Return to ScoreboardMax and click on the "Scoreboard Control" link.

Opening scoreboard controls in ScoreboardMax

Instructions:

  • You can configure any settings for your scoreboard by choosing "Settings" in the upper right
  • At the bottom of the scoreboard controls, you can find a link to tips and instructions on how to control the scoreboard

Pro Tip: You can control the scoreboard from any device that has an internet connection - no need to control from your streaming computer.

Step 8: Invite a Guest Operator (Optional)

You can invite a guest to control your scoreboard temporarily in a couple of clicks - no sign-in required.

Sharing scoreboard controls with a guest

Instructions:

  • This is particularly useful when you are using volunteer help to operate your scoreboard
  • Click the "Share Scoreboard Control" button
  • Choose how long you would like to grant access - from a few hours up to a few days
  • The guest operator can scan the access QR code from their phone or tablet, or you can share it by text or email

Troubleshooting

Common Issues:

Scoreboard Not Appearing

  • Verify that you have an active internet connection
  • Confirm you've copied the complete Livestream Embed URL correctly
  • Try refreshing the browser source (double-click on your scoreboard layer in "Sources", scroll to bottom, click "Refresh cache of current page")

Scoreboard Appears But Doesn't Update

  • Make sure that you are controlling the same scoreboard that is configured in OBS
  • Verify that you have an active internet connection
  • Try refreshing the browser source (double-click on your scoreboard layer in "Sources", scroll to bottom, click "Refresh cache of current page")

Positioning or Bluriness Issues

  • For best results, do not attempt to manually size the scoreboard by dragging the scoreboard frame
  • In the browser source, make sure that the width and height match the Base (Canvas) Resolution (under Settings > Video)

For additional support, please contact us.
